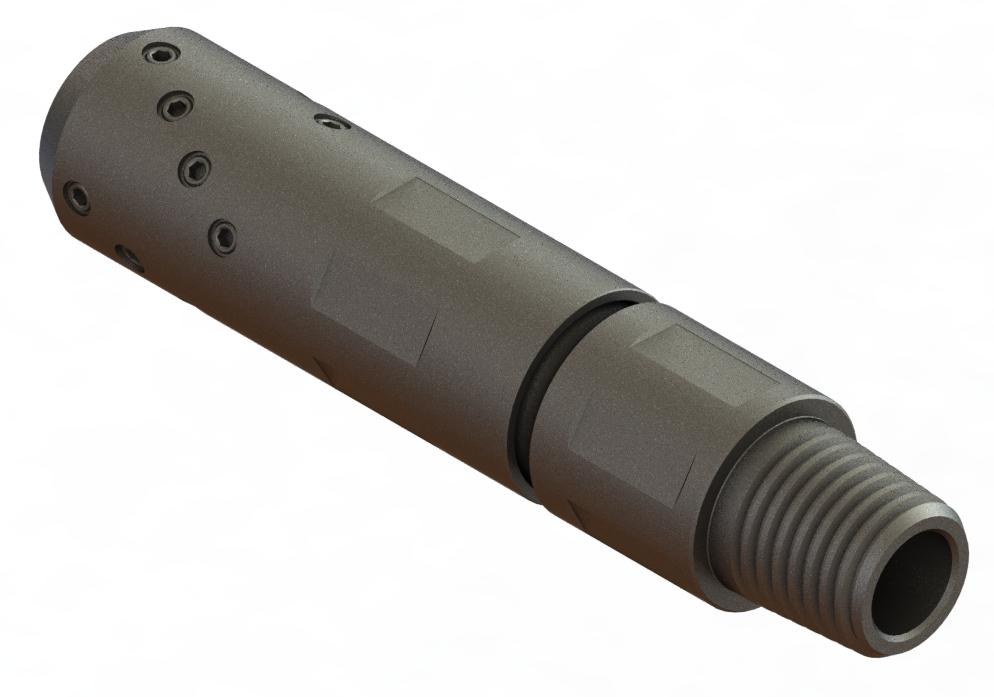

The Heavy External Slip Connector is developed for velocity strings and more none standard coiled tubing applications. The coiled tubing connector has a larger OD than the compact /slimline version and a new style grapple arrangement.
Features
- Conical slip providing an excellent loading capacity
- Higher pressure sealing available
- Anti-stress-concentrition design provides reliability at high loading
- Easy to make up and operation
- No special tooling needed
Sizes Availability
Model Number
CT Size Applicable (In)
Tool OD (mm)
Thread Type
109-150
1.5
54
1-1/2 AMMT pin
109-175
1.75
63.5
1-1/2 AMMT pin
109-200
2.0
73
2-3/8 PAC pin
109-2375
2.375
79
2-3/8 PAC pin
PS. We accept custom orders for special threads, sizes, materials, and other specified requirements.
