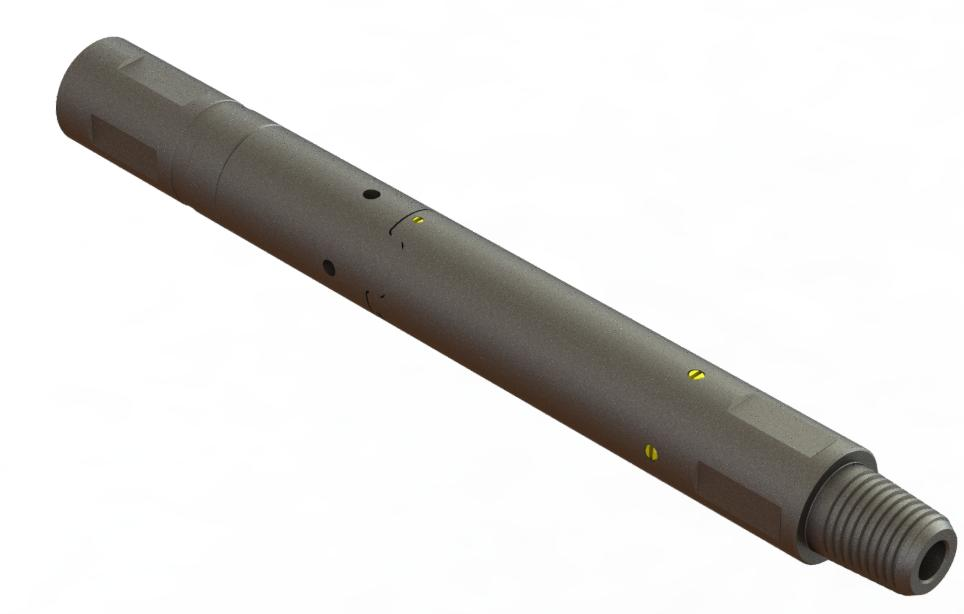

Big Thru-Bore hydraulic disconnect provides a larger bore for coiled tubing stimulation and wellbore cleanup operations. The lower tool can be released by throwing the ball. Provide a larger inner diameter for coiled tubing production and wellbore cleaning operations.
Features
- Claw sleeve structure, Bigger Thru-Bore
- Disconnect by dropping the ball at surface, operating pressure can be controlled accurately.
- Positive torque drive teeth provides high torsion strength.
Sizes Availability
Model Number
Tool OD (In)
Tool ID (In)
Thread Type
203-430
1.69
0.59
1 AMMT B*P
202-450
1.77
0.59
1 AMMT B*P
202-508
2.0
0.59
1-1/2 AMMT B*P
202-540
2.125
0.75
1-1/2 AMMT B*P
202-635
2.5
1
1-1/2 AMMT B*P
202-730
2.88
1.38
2-3/8 PAC B*P
202-790
3.11
1.5
2-3/8 PAC B*P
PS.Custom requirements for special threads, sizes, materials and requirements are accepted
